Solideal AIR 561
Especially designed for ground support equipment, this tire delivers great life on high temperature apron surfaces while ensuring low rolling resistance and increased traction.
Especially designed for ground support equipment, this tire delivers great life on high temperature apron surfaces while ensuring low rolling resistance and increased traction.

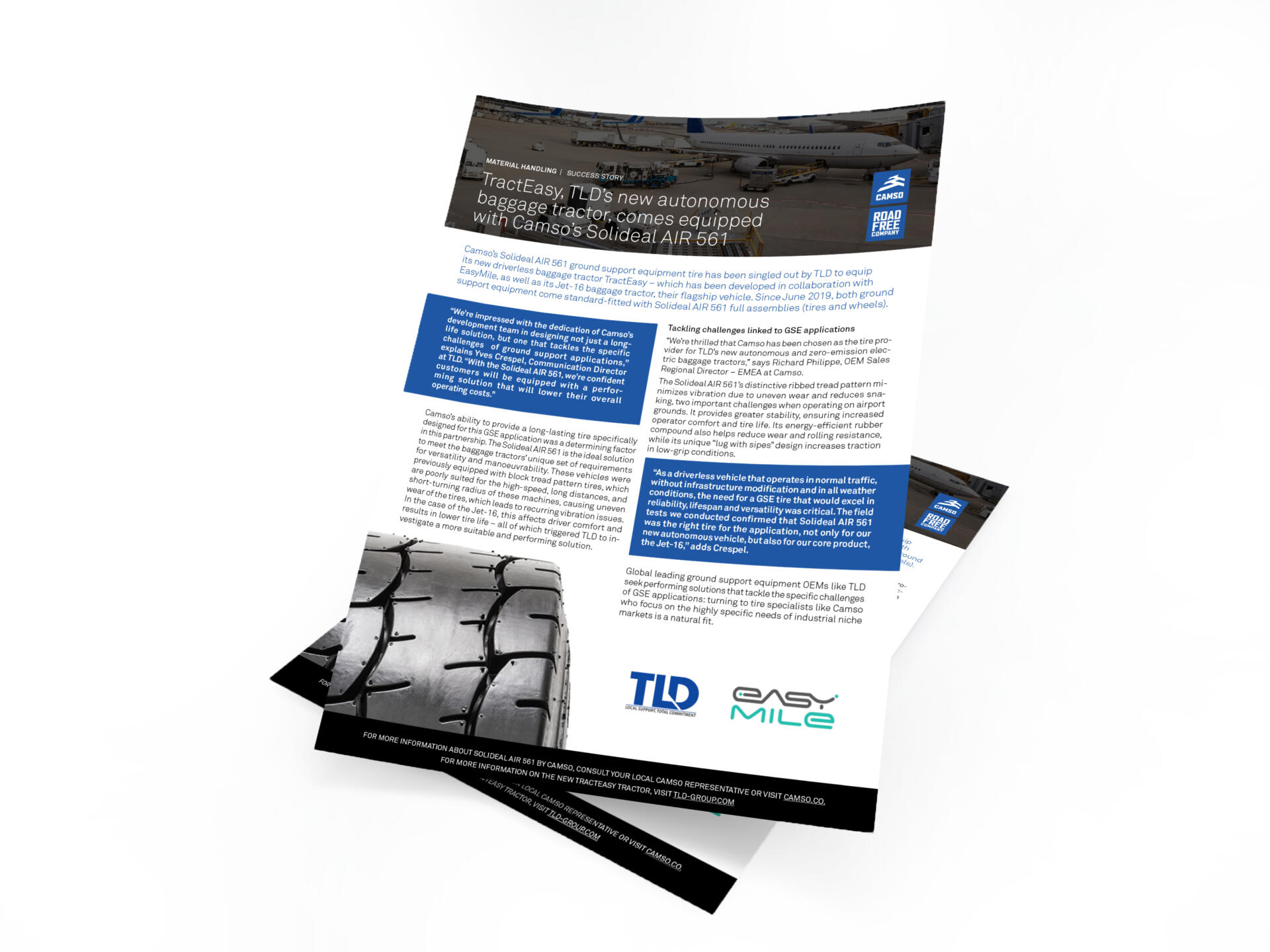

In this success story, we reveal the collaboration between TLD and Camso for the new autonomous baggage tractor TractEasy. Learn more about the specific challenges that arise when trying to find the right tire for ground support equipment, and why the Solideal AIR 561 turned out to be the perfect solution.
To find products that meet your vehicle needs, specify your requirements using the product selector.
Tire size | PR | Tube & Valve | Flap | Rim Size | Actual Tire Dimensions | Inflation Pressure | Load Index | Speed Symbol | Load Capacity | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Recommended | Alternative | Overall Diameter | Overall Width | Original Tread Depth | Static Loaded Radius | Counterbalanced lift Trucks | ||||||||||
Up to 16 mph | Up to 22 mph | |||||||||||||||
Load Wheel | Steering Wheel | Load Wheel | Steering Wheel | |||||||||||||
in | in | in | in | psi | lbs | lbs | lbs | lbs | ||||||||
6.00-9 | 10 | JS2 | 125-9 | 4.00E | - | 21.1 | 6.3 | 0.5 | 9.9 | 125 | 118 | A5 | 3780 | 2910 | 3640 | 2690 |
6.50-10 | 10 | JS2 | 140-10 | 5.00F | 5.50F | 23.1 | 6.9 | 0.5 | 10.7 | 110 | 122 | A5 | 4300 | 3305 | 4135 | 3065 |
7.00-12 | 14 | TR75A | 135-12 | 5.00S | - | 26.5 | 7.3 | 0.6 | 12.3 | 130 | 134 | A5 | 6075 | 4675 | 5840 | 4320 |
7.00-15 | 14 | TR75A | 180-15 | 5.50 | 5.00 | 29.7 | 7.7 | 0.6 | 13.9 | 130 | 140 | A5 | 7385 | 5675 | 7100 | 5245 |
8.00-16.5 | 10 | TBLS | - | 6.75 | - | 29.1 | 8.9 | 0.6 | 80 | 121 | A5 | 4155 | 3195 | 4000 | 2955 | |
8.75-16.5 | 10 | TBLS | - | 6.75 | - | 29.8 | 8.8 | 0.7 | 75 | 124 | A5 | 4585 | 3525 | 4410 | 3265 | |
9.50-16.5 | 10 | TBLS | - | 6.75 | - | 31.5 | 10 | 0.7 | 75 | 127 | A5 | 5015 | 3860 | 4830 | 3570 |
